Mondelin plasterboard lift Levpano 2

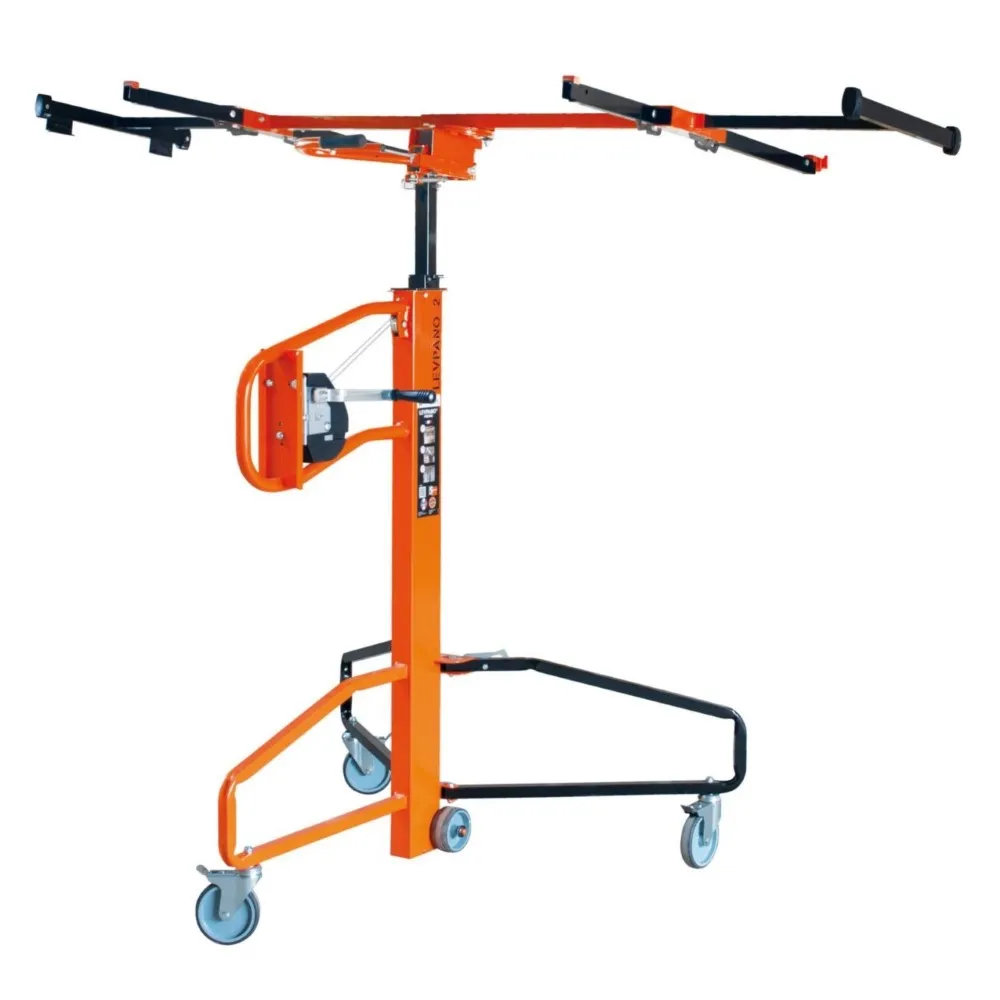

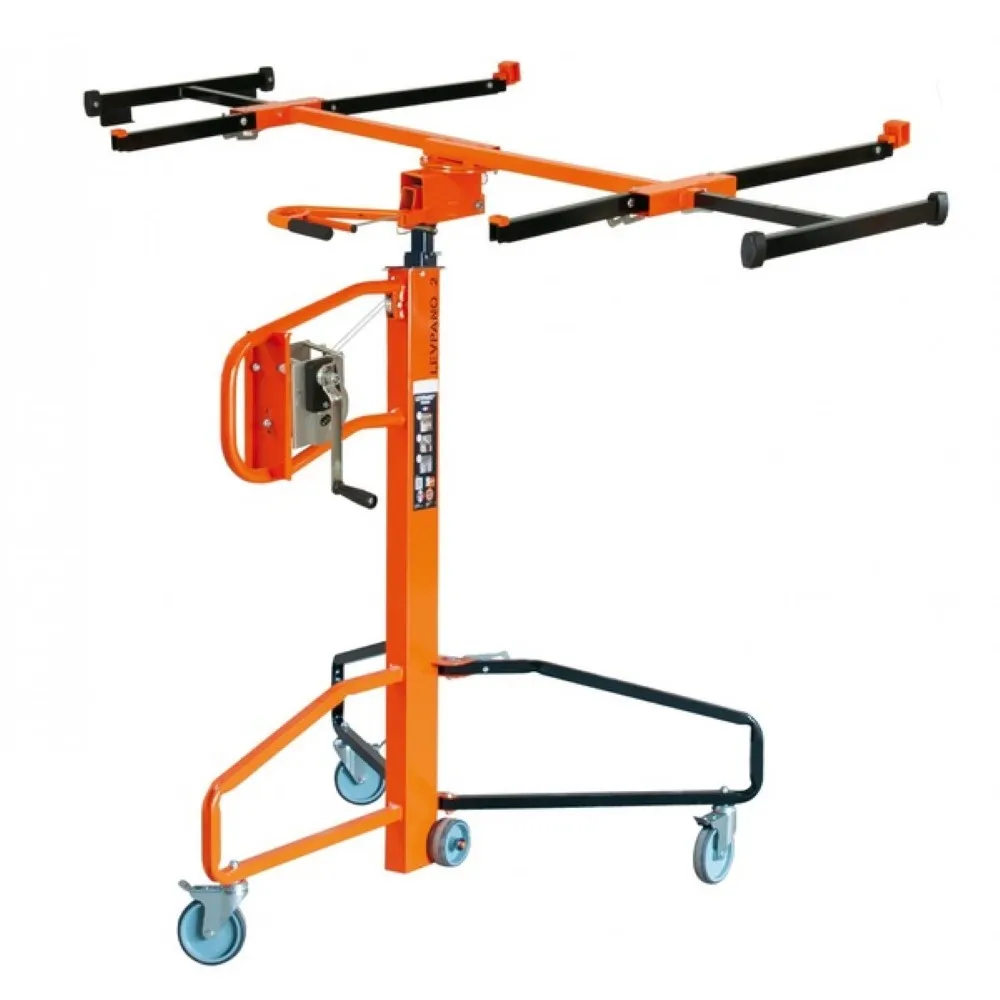

Mondelin Levpano II Plasterboard Lift – Professional drywall lift up to 4.50 m

The Mondelin Levpano 2 plasterboard lift is a professional and ergonomic tool for safely and efficiently installing plasterboard, drywall sheets and other panel materials. It is particularly suitable for ceiling installation and installation on sloping walls, helping to reduce unnecessary strain on the back and shoulders.

Extra Safe and Stable

The Mondelin LEVPANO 2 drywall lift is equipped with a dual steel cable safety system. In addition to the working cable, a separate safety cable is fitted. If the working cable should break, the second cable prevents the mast from collapsing uncontrollably.

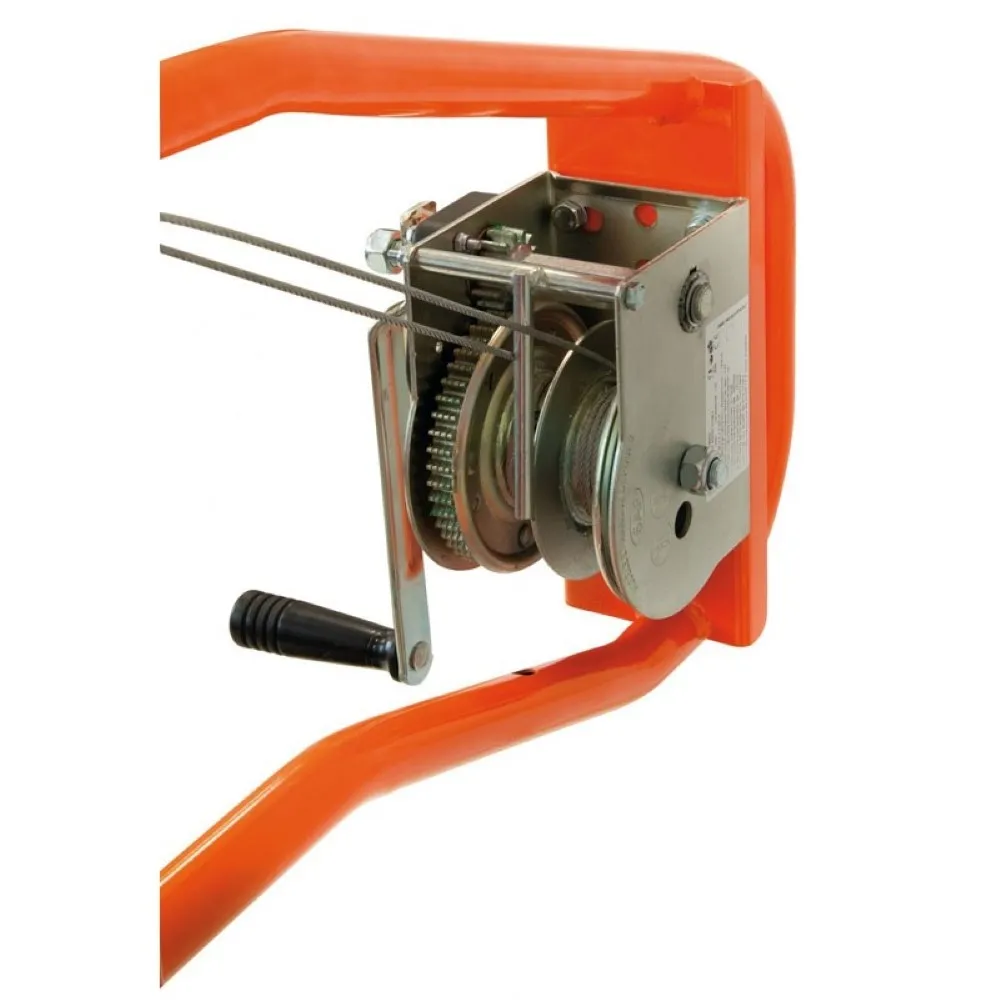

The three-leg base with 3 braked swivel castors, 125 mm diameter, provides excellent stability during use. The winch is mounted on the folding frame rather than directly on the mast, ensuring a clear view of the work area.

User-Friendly Plasterboard Lift

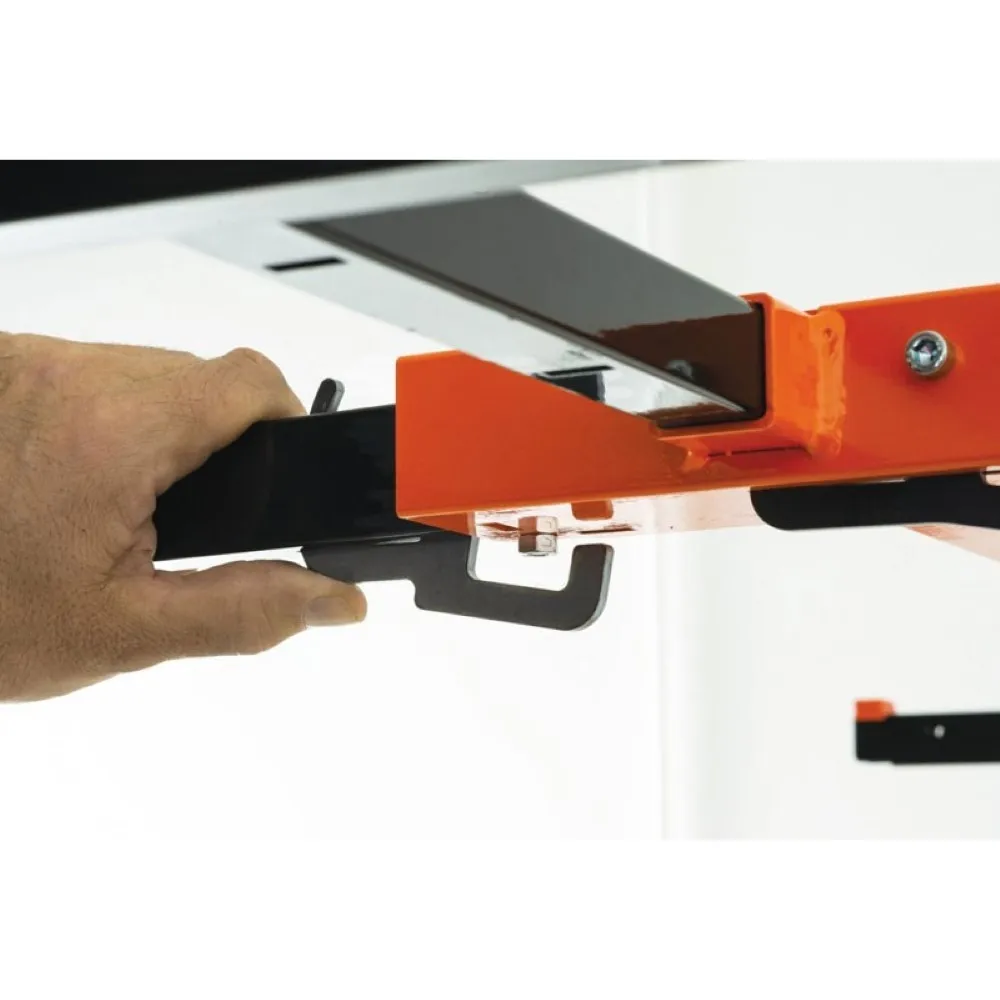

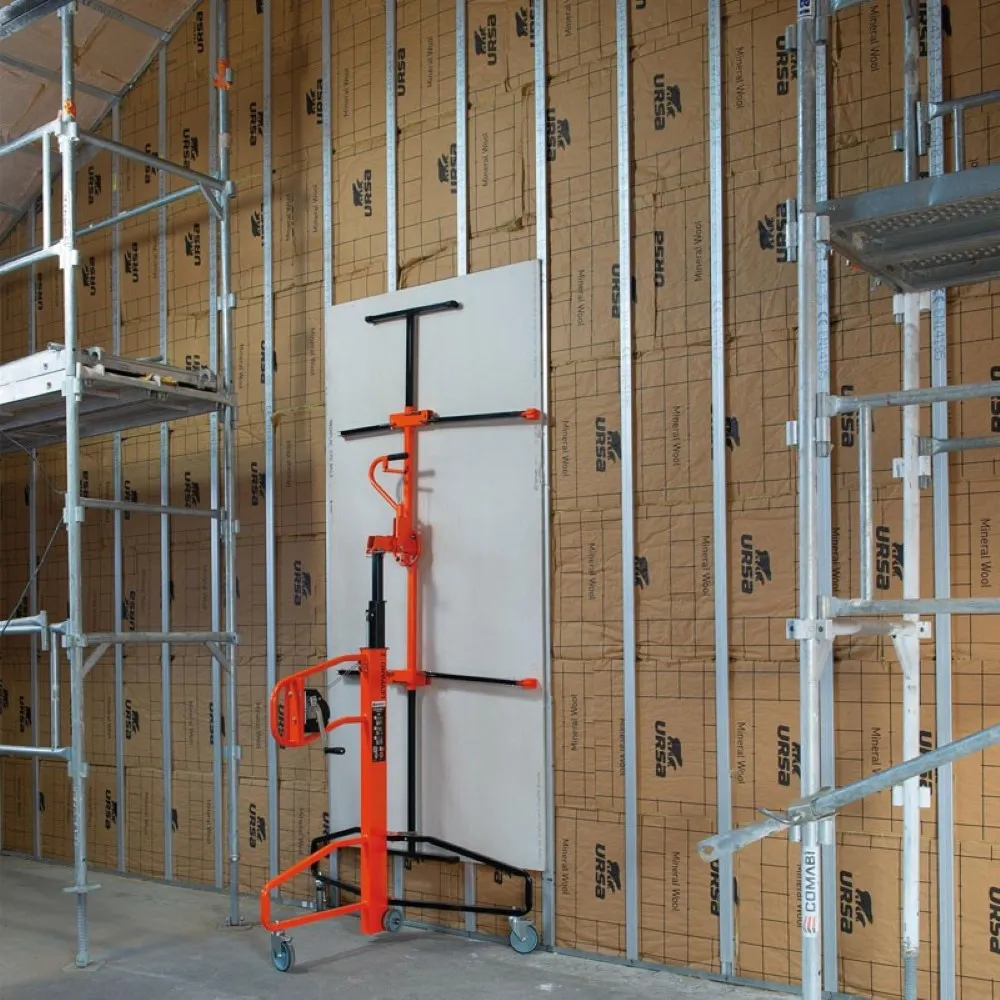

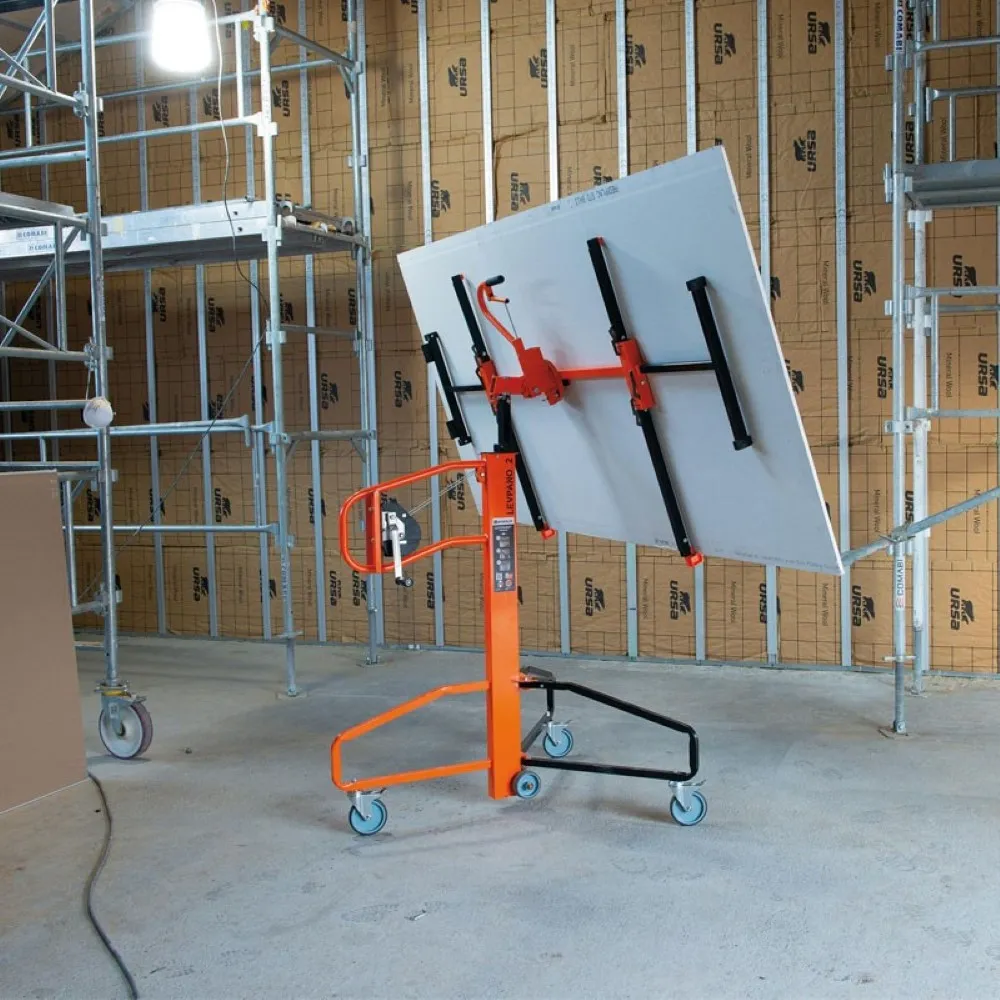

The panel lift features adjustable arms for different board widths. The arms can be tilted, rotated through 360° and locked securely in position. This makes the LEVPANO II suitable for horizontal ceilings, vertical walls and sloping ceilings.

The three-legged base ensures that the Levpano II can easily be placed in a corner or maneuvered through doorways. All these features make the Levpano ceiling lift the ideal ergonomic tool for mounting drywall against ceilings and sloping walls. And that at a maximum height of no less than 4.50 meters!

The drywall panel hoist jack can be quickly assembled and disassembled and consists of only two elements, making transportation easy.

Specifications Mondelin Levpano 2

• Application: plasterboard, drywall sheets and panel materials
• Suitable for: ceilings, vertical and sloping walls
• Maximum horizontal working height: 4.50 m
• Maximum telescopic arm extension: 3.10 m
• Board widths: 0.60 / 0.90 / 1.20 m
• Maximum load: 75 kg
• Loading height: 0.82 m
• Base dimensions: 1.15 × 1.15 m
• Wheels: 3 braked swivel castors, Ø 125 mm
• Weight: 43 kg
• Safety: dual steel cable system
• Standards: CE compliant, European Directive 2006/42/EC
• Inspection: SOCOTEC
• Warranty: 5 years

Looking to buy a Mondelin Panel Lift 2?

Choose a professional tool that makes lifting, supporting, and positioning sheet materials easier and more efficient. Ideal for professionals who work with drywall, ceiling panels, and other sheet materials on a daily basis.
