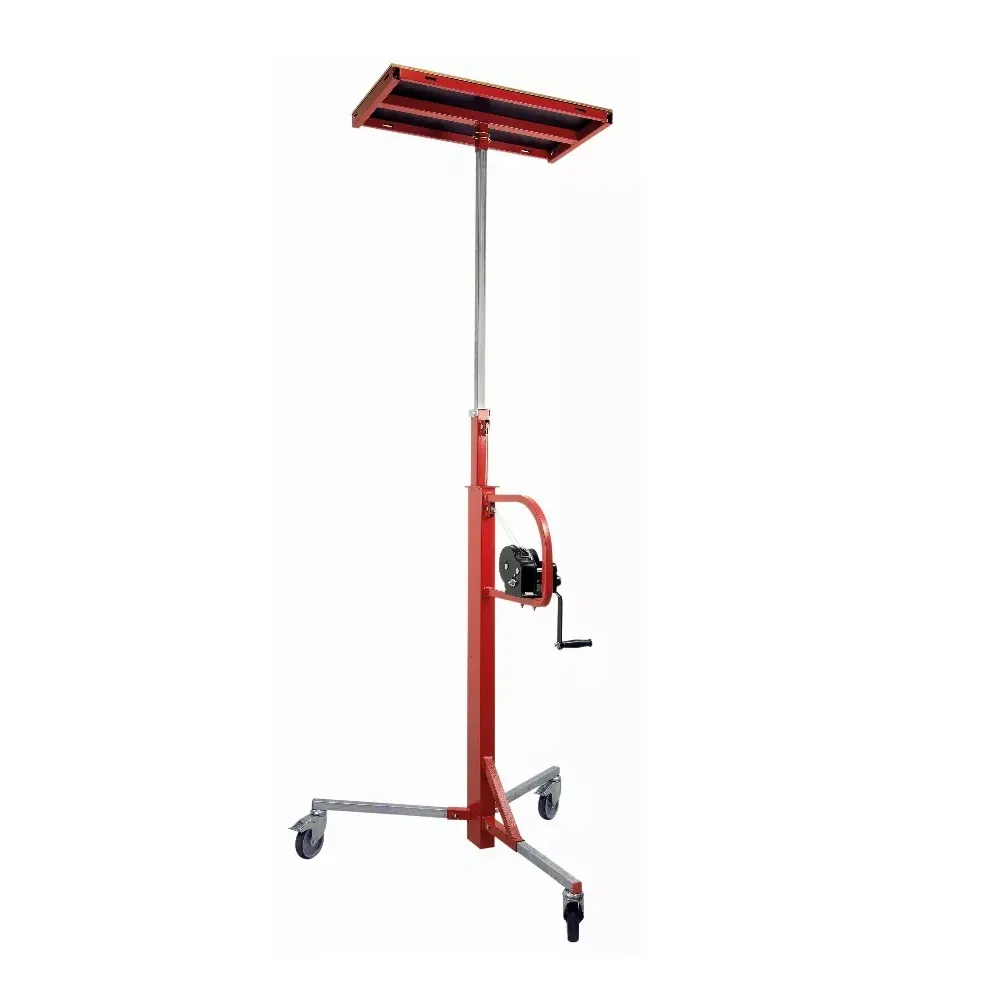

Mondelin material lifter

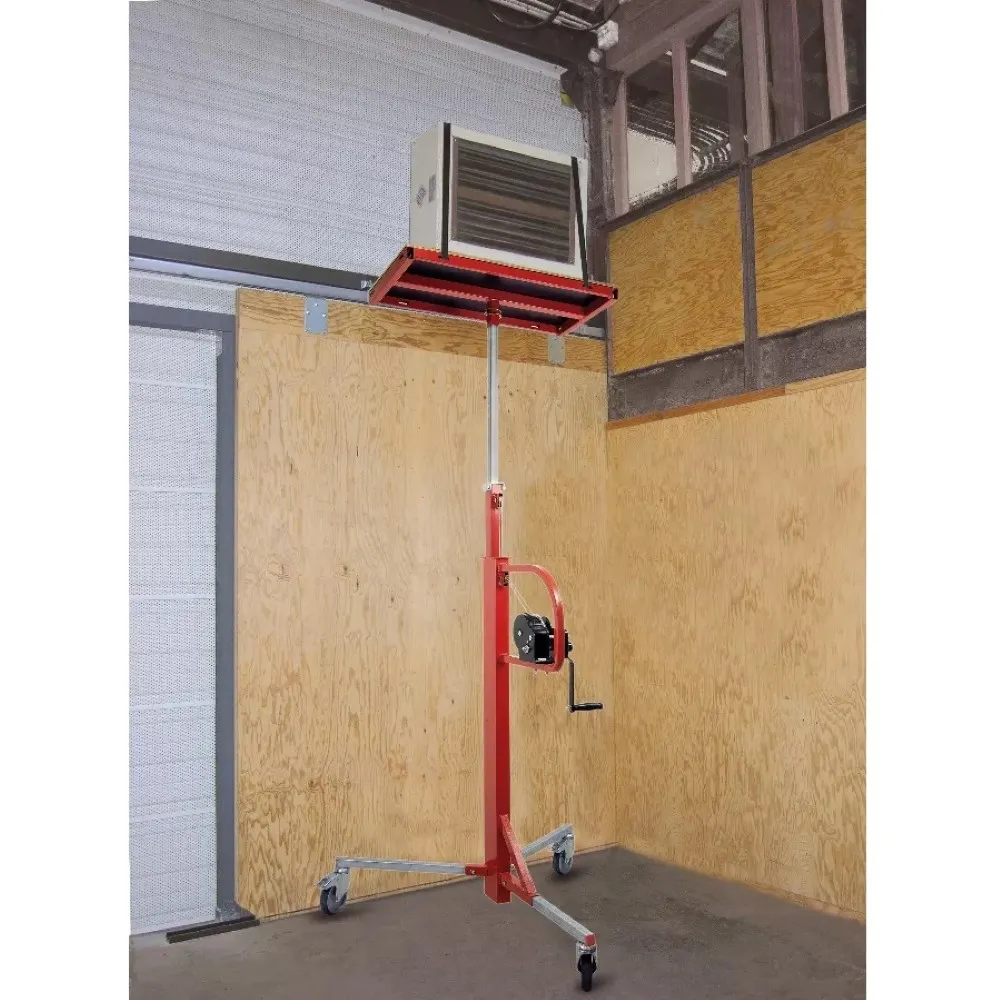

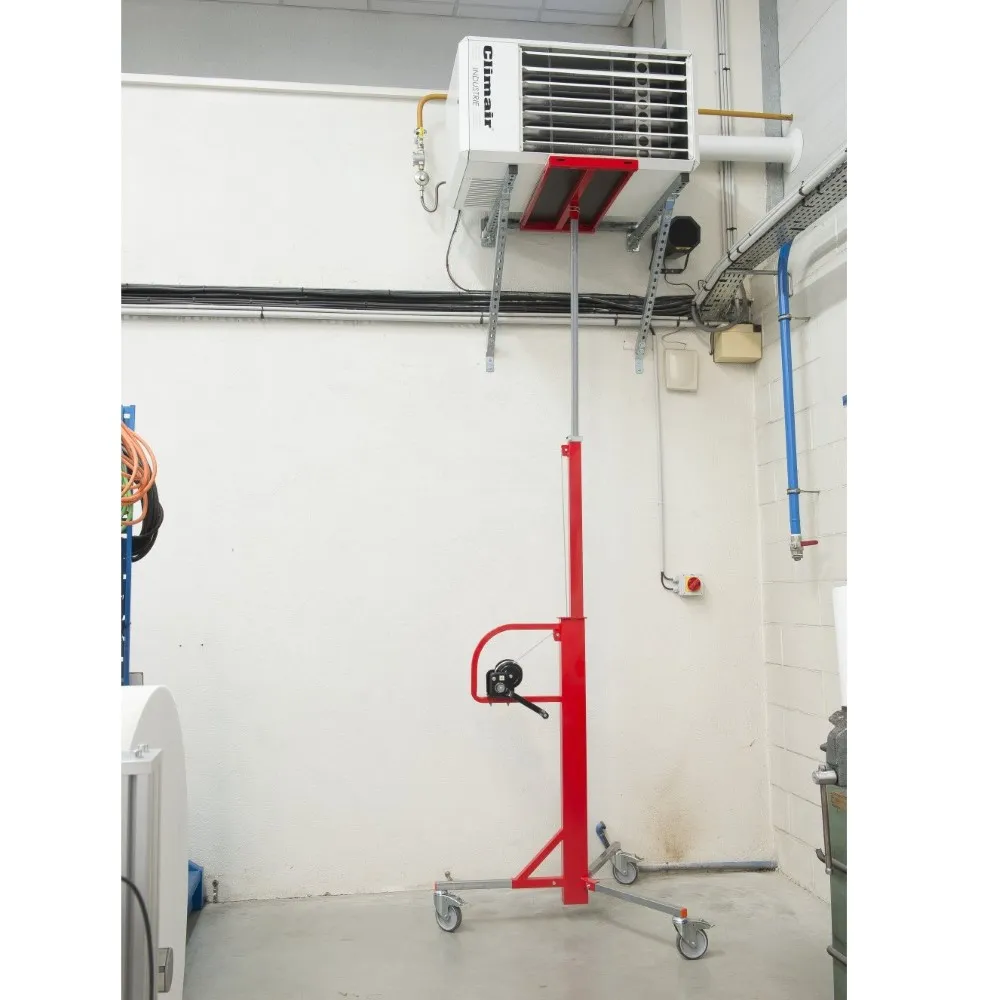

For quick and easy assembly of heaters, air conditioners or for vertical transport of other materials, among others. Thanks to its 3-legged base, the Mondelin equipment elevator is easy to maneuver into corners or through doorways. The winch is patented and equipped with 2 steel cables: 1 working cable and 1 safety cable. When the working cable snaps, the mast does not collapse thanks to the extra cable; safe and reliable! The Mondelin material elevator is equipped with transport wheels and folded very compact, therefore easy to transport.

Product Specifications:

• Quick assembly/disassembly. Easy to transport.
• Can easily pass through doorways of 73 cm wide.
• Base fitted with 3 swivel castors 125 mm, 2 castors are braked.
• Platform dimensions: 79,5 x 37,5 cm

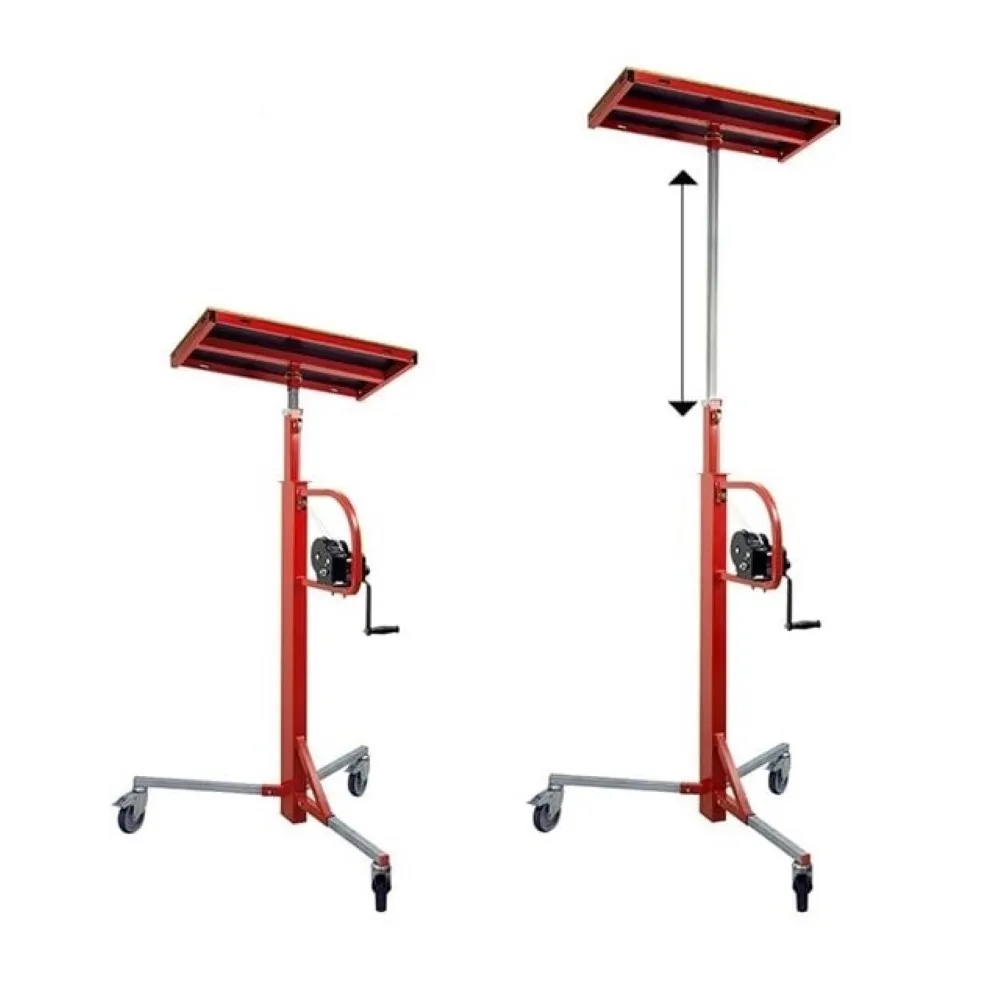

• Maximum height: 3.50 m
• Loading height: 1.40 m
• Base dimensions: 1.05 x 1.05 x 1.00 m
• Maximum load: 100 kg
• Weight: 29 kg
• Standard: conforms to the CE standard and the European directive 2006/42/CE, SOCOTEC
• Warranty: 5 years
